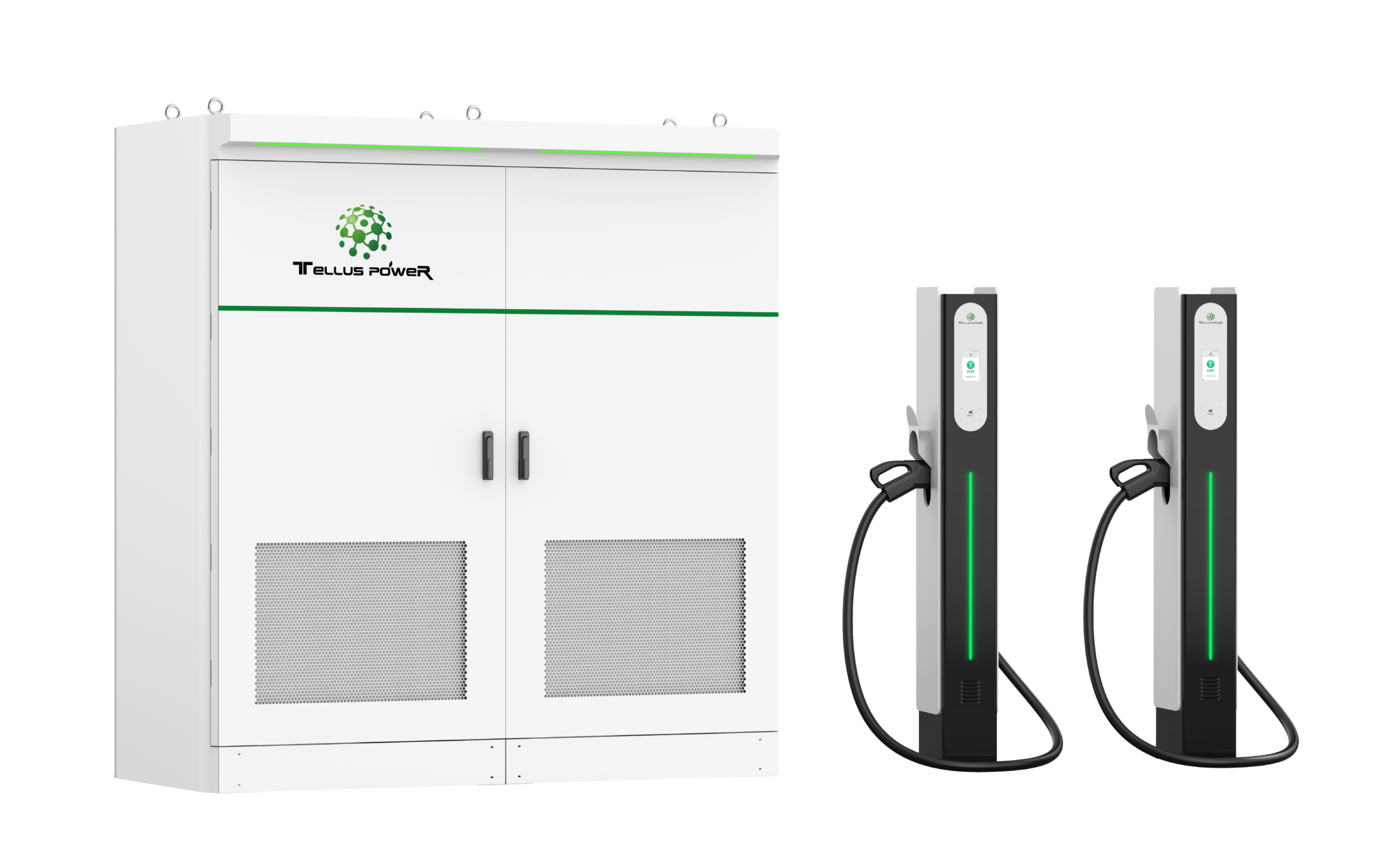

| Specifications | 480 kW | 600 kW | 720 kW | 800 kW | 960 kW | 1200 kW |
|---|---|---|---|---|---|---|
| Main power cabinet AC Input Voltage |
||||||
| Input voltage | 480 V AC±10% || 60 Hz | |||||
| Power supply system | L1+L2+L3+N+PE, TN/TT | |||||
| Input current | 2x320 A | 2x388 A | 2x465 A | 2x345 A | 3x413 A | 4x388 A |
| Power factor | > 0.98 @ full load | |||||
| THD | <5% | |||||
| DC output | ||||||
Output Voltage |
150 ~ 1000 V DC | |||||
| Output current | 1280 A | 1600 A | 1920 A | 2133 A | 2560 A | 3200 A |
| Efficiency | ≥94% at nominal output power | |||||
| Maximum charging terminals support | Up to 12 connectors | |||||
| Communication | ||||||
| Network connectivity | Ethernet, Wi-Fi, 4G | |||||
| Communication to the backend | OCPP 1.6J & OCPP2.0.1 (optional) | |||||
| Environment | ||||||
| Operating Temperature | -31°F to 122°F (-35°C ~ 50°C) | |||||
| Storage temperature | -30°C ~ 70°C | |||||
| Altitude | ≤6561ft (2000 m) | |||||
| Humidity | 5%~95% no condensation | |||||
| Protective class | NEMA 3R | |||||
| Cooling system | Forced air-cooling | |||||
| Regulation | ||||||
| Safety and Low voltage electrical | UL 2232-1/-2,UL 2202 | |||||
| Other | ||||||
| User interface | Emergency stop button | |||||
| Dimension (W X D X H) | 82.68”× 51.75”× 89.38” (2100 mm×1314 mm×2270 mm) | |||||
| Weight | 2540 lbs. (1152 kg) | 2672 lbs. (1212 kg) | 2848 lbs. (1292 kg) | 2672 lbs. (1212 kg) | 2848 lbs. (1292 kg) | 3113 lbs. (1412 kg) |
| Specifications | Single connector Dispenser |
|---|---|
| AC input | |
| Input Voltage | 85~305 V AC ,50/60 Hz, Single phase (L+N+PE) |
| DC Output | |
| Output voltage range | 150 ~ 1000 V DC |
| Max output current | CCS1 :350 A, NACS : 350 A, CHAdeMO : 200A |
| User Interface | |
| Display | 5” LCD touch screen and LED indicator |
| User authentication and payment | RFID, PIN code, QR code + smartphone, credit card (optional) |
| Communication | |
| Communication to the EV | ISO 15118, DIN 70121 |
| Communication to the backend | Tellus Power protocol (default) |
| Protection | |
| Output protection | Short circuit protection | Insulation protection | Over temperature protection |
| Environment | |
| Operating temperature | -31°F to 122°F (-35°C ~ 50°C) |
| Storage temperature | -30°C ~ 70°C |
| Altitude | ≤6561ft (2000 m) |
| Humidity | 5% ~ 95% no condensation |
| Protective class | NEMA 3R |
| Cooling system | Forced air-cooling |
| Regulation | |
| Regulatory Compliance | UL 2232-1/-2,UL 2202 |
| Other | |
| Metering | 1% accuracy |
| Dimension (W X D X H) | Natural cooling : 11.91” × 19.69” × 66.4”(302.6 mm×500 mm×1686.5 mm)
Liquid cooling : 19.47” × 32.28” × 74.25”(495 mm×820 mm×1886 mm) |
| Weight | Natural cooling:225 lbs. (102 kg) || Liquid cooling:331 lbs. (150 kg) |
| Connector cable length | 5 m |
| Specifications | Single connector Dispenser |
|---|---|
| AC input | |
| Input Voltage | 85~305 V AC ,50/60 Hz, Single phase (L+N+PE) |
| DC Output | |
| Output voltage range | 150 ~ 1000 V DC |
| Max output current | MCS :1500A Liquid-Cooled |
| User Interface | |
| Display | 7” LCD touch screen and LED indicator |
| User authentication and payment | RFID, PIN code, QR code + smartphone, credit card (optional) |
| Communication | |
| Communication to the EV | ISO 15118, DIN 70121 |
| Communication to the backend | Tellus Power protocol (default) |
| Protection | |
| Output protection | Short circuit protection | Insulation protection | Over temperature protection |
| Environment | |
| Operating temperature | -31°F to 122°F (-35°C ~ 50°C) |
| Storage temperature | -30°C ~ 70°C |
| Altitude | ≤6561ft (2000 m) |
| Humidity | 5% ~ 95% no condensation |
| Protective class | NEMA 3R |
| Cooling system | Liquid cooling |
| Regulation | |
| Regulatory Compliance | UL 2232-1/-2,UL 2202 |
| Other | |
| Metering | 1% accuracy |
| Dimension (W X D X H) | 18.89”× 14.90”× 75.59”(480 mm×378.5 mm×1920 mm) |
| Weight | 401 lbs. (182 kg) |
| Connector cable length | 5 m |

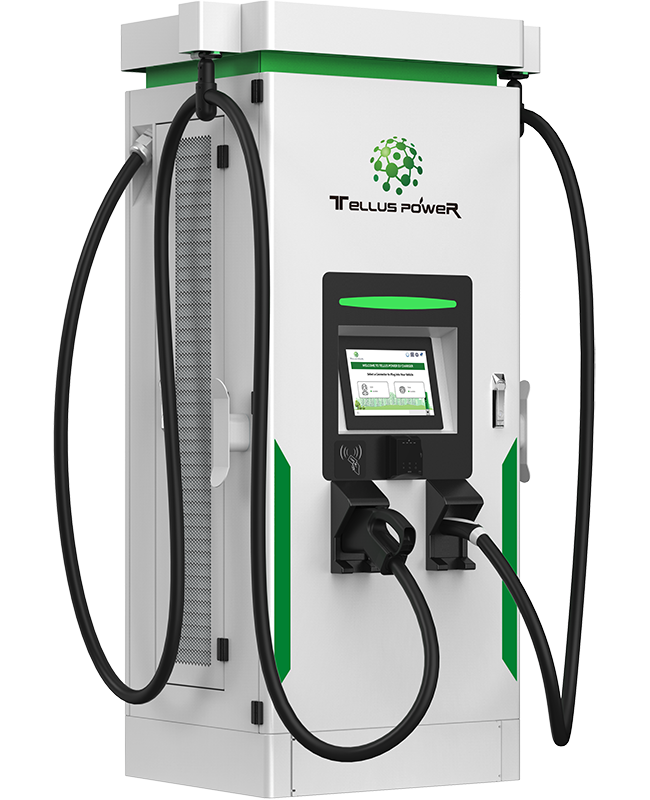

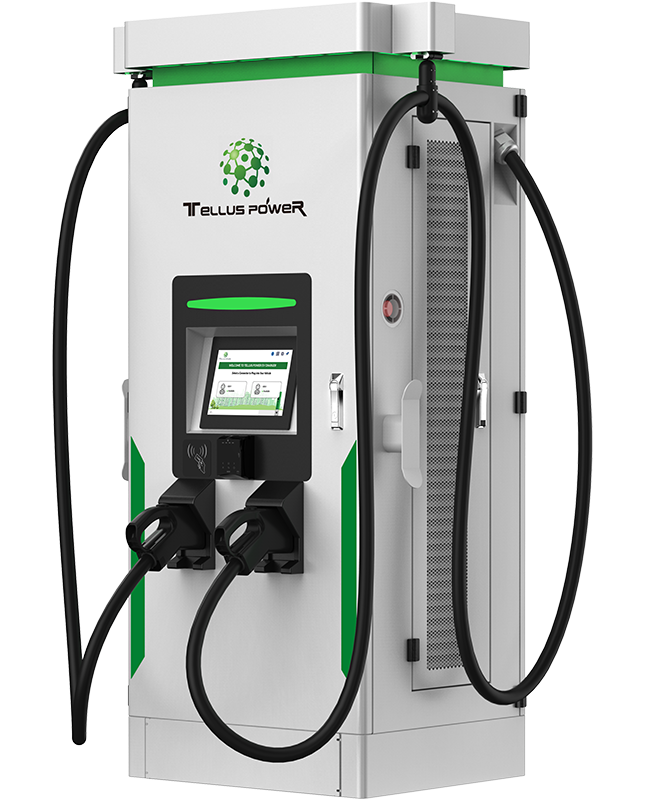

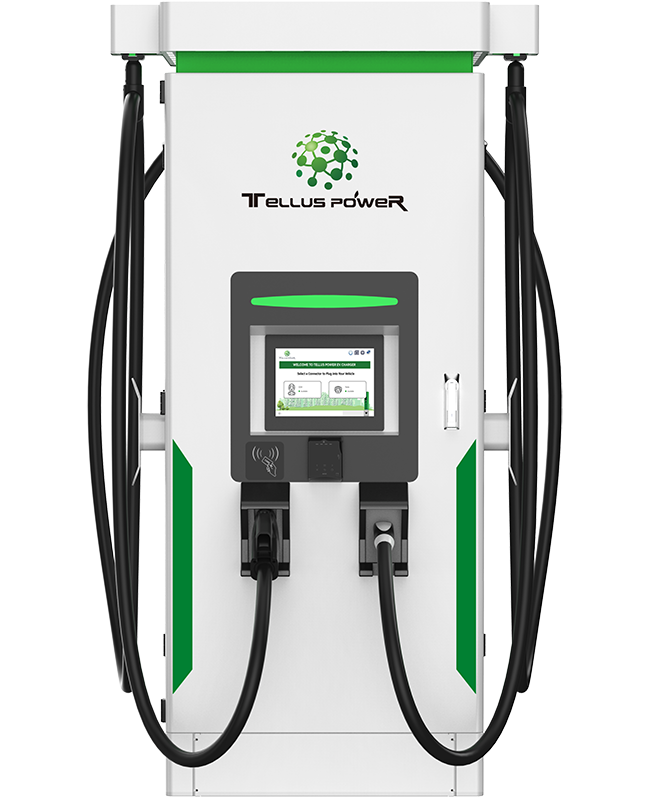

| Specifications | Dual connector Dispenser |
|---|---|
| AC input | |
| Input Voltage | 85~305 V AC ,50/60 Hz, Single phase (L+N+PE) |
| DC Output | |
| Output voltage range | 150 ~ 1000 V DC |
| Max output current | CCS1 : 350A || NACS : 350A || CCS1 : 500A Liquid-Cooled || CHAdeMO : 200A |
EV connector(PCS) |
2 |
| User Interface | |
| Display | 7” LCD touch screen and LED indicator |
| User authentication and payment | RFID, PIN code, QR code + smartphone, credit card (optional) |
| Communication | |
Network Connectivity |
Ethernet, Wi-Fi, 4G |
| Communication to the EV | ISO 15118, DIN 70121 |
| Communication to the backend | Tellus Power protocol (default) |
| Protection | |
| Output protection | Short circuit protection | Insulation protection | Over temperature protection |
| Environment | |
| Operating temperature | -31°F to 122°F (-35°C ~ 50°C) |
| Storage temperature | -30°C ~ 70°C |
| Altitude | ≤6561ft (2000 m) |
| Humidity | 5% ~ 95% no condensation |
| Protective class | NEMA 3R |
| Cooling system | Natural cooling or Liquid cooling(optional) |
| Regulation | |
| Regulatory Compliance | UL 2232-1/-2,UL 2202 |
| Other | |
| Metering | 1% accuracy |
| Dimension (W X D X H) | Natural cooling : 19.47”× 32.28”× 74.25”(495 mm×820 mm×1886 mm)
Liquid cooling : 19.47”× 32.28”× 74.25”(495 mm×820 mm×1886 mm) |
| Weight | Natural cooling:408 lbs. (185 kg) || Liquid cooling:414 lbs. (188 kg) |
| Connector cable length | 5 m |
Ultra-Fast Charging - Delivers DC Output Voltage up to 150–1000VDC of power, ensuring rapid charging for all EVs, including those with high-capacity batteries
Screen Display – Features a 5” LCD Touchscreen with LED indicator
User Authentication – Supports multiple payment options - APP, RFID, Credit Card, and Smartphone payments.
Max Output Connectors – Supports CCS1: 350A / 500A (Liquid-Cooled), NACS: 350A / 500A (Liquid-Cooled) offering compatibility with a wide range of electric vehicles.
RSmart Connectivity – Equipped with Ethernet, Wi-Fi, and 4G communication, EV Communication: ISO 15118, DIN 70121 for seamless network integration.
