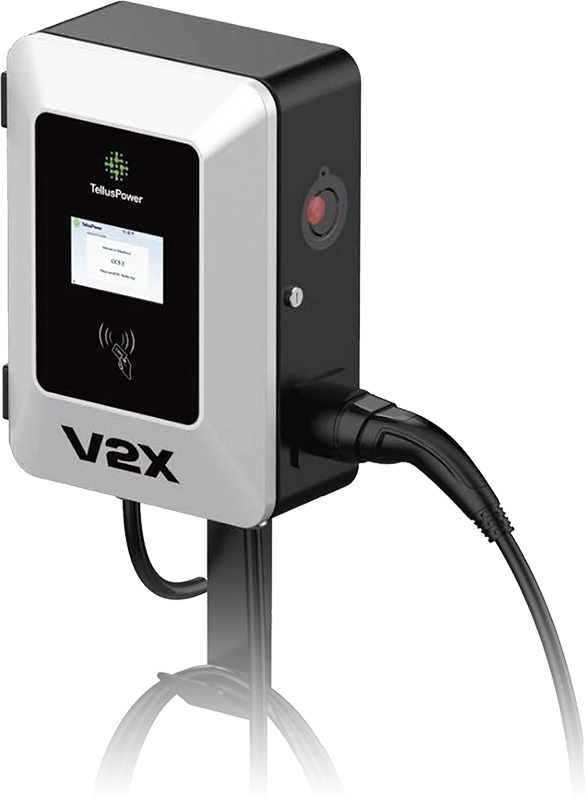

Tellus Power Green Wall Mount /
Stand Pedestal (optional) AC Charger
| 7 kW | 11 kW | |
|---|---|---|
| AC input | ||
| Power | LN+PE | l1 L2L3N+PE , Tt1ree-pl1ase |
| Input / Output AC voltage | 176 ~ 264 V AC | 305 ~ 457 V AC |
| Rated current | 32 A AC*1 | 16 A AC*3 |
| Rated AC frequency | 50/60±1 Hz | |
| Rated output power | 7 kW Single phase | 11 kW Thee-phase |
| EV connector type | Type 2 | |
| EV connector (PCS) | 1 | |
| EV charger cable | 5 m (Others optional) | |
| AC Output | ||
| Power | LN+PE | L1L2L3N+PE, Three-phase |
| AC output (V) | 176 ~ 264 V AC | 305 ~ 457 V AC |
| Rated AC frequency | 50/60±1Hz | |
| Discharging protocol | ISO 15118-2; ISO 15118-20; DIN 70121 | |
| Environment | ||
| Operating temperature | -25°C ~ 50°( | |
| Altitude | ≤ 6561ft (2000m) | |
| Humidity | 5% to 95% no condensation | |
| Degree of protection (IP Class) | IP54 | |
| Communication | ||
| Network connectivity | LAN (Optional) Wi-Fi (Optional) 4G (Optional) BLE V5.01 (Optional) OCPP V1.6 / WSS (Yes if has Network connectivity) Local Load balance (Optional) |
|
| Interface protocol | OCPP 1.6J OCPP 2.0.1 OCPP 2.1 |
|
| User interface | ||
| RFID reader | Active multi-standard | |
| HMI | 5" LCD Screen | |
| Power meter | / | |
| Safety | ||
| Protection | RCD Type A+6 (with external RCBO Type A) Overvoltage and under voltage protection Over current protection Upstream protective conductor monitoring (Optional) Output PE continuous continuity checking Surge protection: 4 kV Output short circuit protection (External RCBO) Contactor welding monitoring Temperature monitoring 2 pcs (Optional) |
|
| Regulation | ||
| Standard | IEC/EN 61851-1:2017; IEC 61851-21-2:2018 IEC 62196-1:2014; IEC 62196-2:2016 IEC 62955-2018; IEC 61439-7-2018 |
|
| Mechanical | ||
| Dimension (WXDXH) | 16.93” x 11.81" x 7.56” (430mm x 300mm x 192mm) | |
| Weight | 21.38 lbs. (9.7kg) | 23.15 lbs. (10.5kg) |
| Mounting | Wall mounted / Stand pedestal (optional) | |
