7.2 kW AC Charger

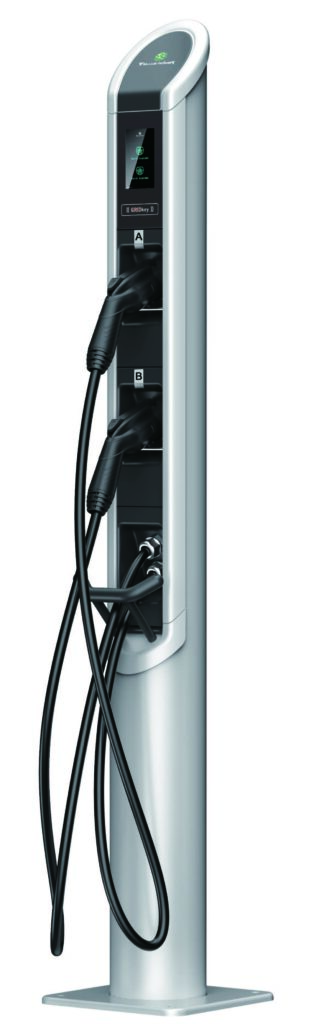

Tellus Power Green Pedestal / Wallmount AC Chargers

7.2 kW –14.4 kW Models

Model: # TP-EVVA-30A

Connectors

FEATURES
Made to last with rugged ¼" aircraft-grade and marine-grade aluminum
RFID reader and built-in numeric keypad for secure pin number authorization
Full Line of Products: Pedestal Mount, Pole Mount, Wall Mount
Single and Dual Port
Field-Swappable Modular Components
OCPP 1.6J
UL Certified
Specifications
AC Power Input 208-240VAC 60Hz, single phase @ 40A x 2
Power Connections Dual Port Level 2, Level 2: (2) Independent 40A branch circuits
Required Breaker Panel (2) 40A Dual pole breaker (non GFCI type) or (1) 40A with power sharing
Output Current 30A Continuous x 2
Station Power Output 7.2kW Max for each port
Wiring (2) 208-240 VAC and shared Earth/Ground. Total 5 wires
EV Charging Connector SAE J1772TM (Level 2)
EV Charging Cable 18' Long
Display 5" touch screen
Network Connectivity LAN: hard wired Cat 5 for master/slave stations. WAN: Cellular network for the master station
RFID Reader Active multi-standard
  Data Inputs/Outputs Rj45 x 2 (CAT-5 Ethernet cable connects Gateway station to Non- Gateway station)
Construction Housing: 1/4" aluminum; Base Pad 1/2" Aluminum; End Caps: Aluminum; Head: Polycarbonate plastic
Housing Color Gray
Enclosure Rating NEMA3R
Operating Temperature -30° to +130°F (-35° to +55°C)
Operating Humidity Up to 95°/o non-condensing
Terminal Block Temp. Rating 212°F (100°C)
Plug Out Protection Power cut-off per SAE J17712TM specifications
Ground Fault Protection 20mA
Open Safety Ground Protection   Monitors safety (green wire) ground connection
Surge Protection 6kV@3000A (additional protection at panel advised)
Power Metering Accuracy 1°/o -/+ Accuracy
Power Report/Store Interval 15-minute, aligned to hour
Grid Health Protection Line voltage & frequency detection logging
Safety Certification ETL Listed. Complies: UL2231-1, UL2231-2, UL2231-2, UL2594, UL 991;NEC Article 625 for J1772, CAN/CSA-C22.2 No. 280
Weight Pole Model: 30 lbs., Wall Model: 30 lbs., Pedestal: 73 lbs
Environmental Data Housing: RoHS compliant major components
Dimensions Pole/Wall Mount: 54" H X 7" W. Pedestal Mount: 70" H X 7" W.
Base Pad Size 12" x 12" x 12" (Pedestal Mount Only)
Warranty 2-Years Parts Only
Get Started!
Provide your information, and we’ll get in touch with you to talk about your charging needs.
By clicking submit below, you consent to allow Tellus Power Green - North America to store and process the personal information submitted above to provide you the content requested.
  • Parallel Charging
  • RFID Reader
  • OCPP 1.6J Compliant
  • ETL Certified
  • Single and Dual Connectors
  • Configurable output power settings
  • Optional Credit Card Reader
  • FRU Onboard Diagnostics, Easy to Service
