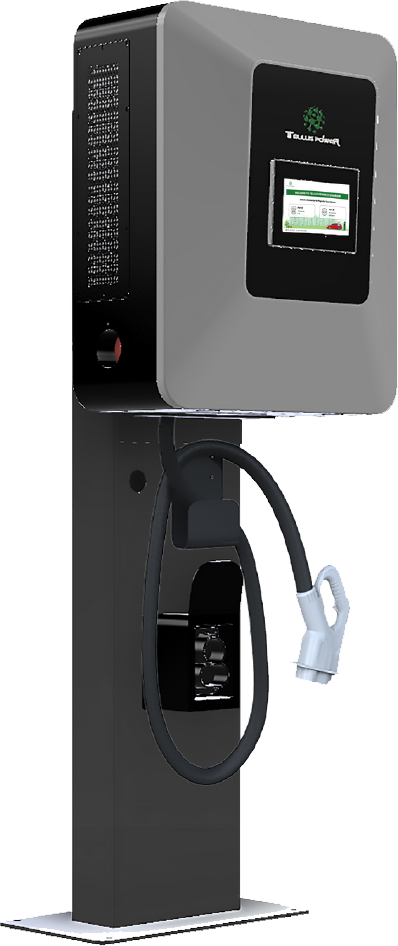

30 kW DC Charger

Tellus Power Green DC Fast Charger

Model : TP-EVPD-30kW

Connectors

FEATURES
Upto 100A with 1000VDC
Upto 100A with 1000VDC
4G / Wi-Fi / Ethernet connectivity
7” Touch screen display
OCPP 1.6J
CCS1 Connector
Wall Mount / Pedestal Installation
Easy Installation
Cord Management
Specifications
Product# TP5-30-480-1
Model# TP-EVPD-30kW
Input Voltage 480VAC (3P+N+PE), 60Hz
FLA||Breaker Rating 40A || 50A
Output Voltage 150 to 1000VDC
Output Current Up to 100A
Connector(s) CCS1
Efficiency ≥94% at nominal output power
Power Factor > 0.98
Operating Temperature 22°F to 131°F (-30°C  to 55°C)
Working || Storage humidity ≤95% RH || ≤99% RH (Non-condensing)
Altitude < 6600ft (2000m)
Display 7’’ touch screen
RFID system ISO || IEC 14443A/B
Dimensions (lxdxh) 21’’x12’’x27’’
Protective Class NEMA 3S, IK10
Cooling System Air cooled
Weight 176 lbs (80kg)
Charging Protocol Mode4, IEC-61851, ISO-15118, DIN SPEC 70121
Length of charging cable 16ft(5m)
Communication||Protocol Ethernet / 4G Wi-Fi || OCPP1.6J
Electrical Safety: GFCI RCD 20 mA Type A
Electrical Safety: Surge Protection 20 kA
Electrical Safety General Over Voltage, Under Voltage, Over Current, Missing Ground
Electrical Safety: Output Short Output power disabled when output is short circuited
Electrical Safety Temperature Temperature Sensors @ Charge Coupler and Power Electronics
Emergency Stop Emergency Stop Button Disables Output Power
Regulatory Compliance UL-2202 || CSA C22.2#107.1:2016 || EMC: EN 61000-6-1:2007,EN 61000-6-3:2007/A1:2011/AC:2012
Get Started!
Provide your information, and we’ll get in touch with you to talk about your charging needs.
By clicking submit below, you consent to allow Tellus Power Green - North America to store and process the personal information submitted above to provide you the content requested.
  • Parallel Charging
  • RFID Reader
  • OCPP 1.6J Compliant
  • ETL Certified
  • Single and Dual Connectors
  • Configurable output power settings
  • Optional Credit Card Reader
  • FRU Onboard Diagnostics, Easy to Service
