200 kW DC Charger

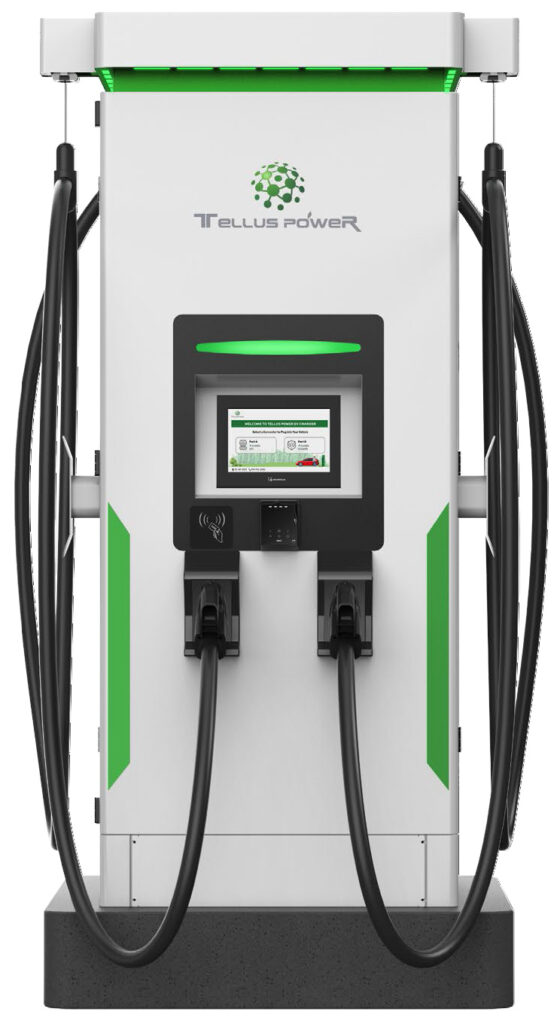

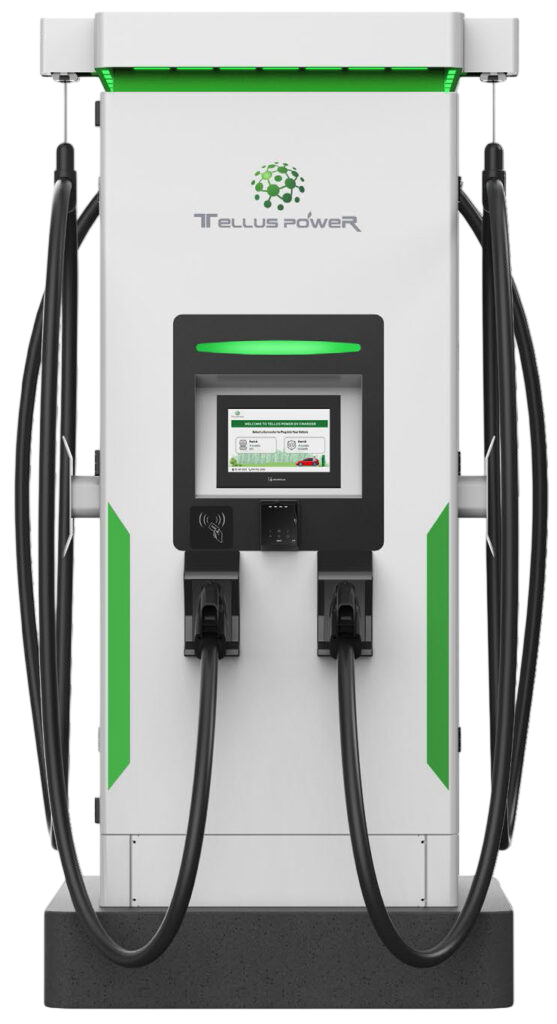

Tellus Power Green DC Fast Charger

Model : TP-EVPD-200kW

Connectors

Other Avalible Power Range
FEATURES
HPC System with 1000VDC
HPC System with 1000VDC
Powerful Compact All-In-One Charger
Simple Air-Cooled Power Modules
Easy to Maintain
Parallel Charging Feature
Liquid Cooled Cables
OCPP 1.6
Credit Card Reader
Specifications
Product Number HPC-200-480
Maximum Power 200 kW
Output Voltage 150 – 1000 VDC
Max Output Current Up to 500A
Input Voltage || Frequency 480V (3P + N + PE) || 60 Hz
Input Current || Breaker Rating 250A || 350A
Power Factor >0.98
Efficiency >94% at nominal output power
Connector Options CCS1 and CCS1
CCS1 and NACS
NACS and NACS
CCS1 and CHAdeMO
CCS Cable 500A Liquid Cooled
CHAdeMO Cable 125A (Standard) Or 200A
Cycle Mode 1 x 200kW (Max: 500A)
Parallel Mode 2 x 100kW (Max: 250A)
Charging Protocol Standards Mode 4,IEC-61851,ISO-15118,DIN 70121 || Mode 4, CHAdeMO 0.9,1.0
Connector cable length CCS/NACS - 13 ft (4 m) | CHAdeMO – 16ft (5 m)
Weight 881 lbs (400 kg)
Dimensions (L x D x H) 33.5‘’ x 33.9’’ x 81.3’’
Insulation (input – output) >2.5 kV
Ingress Protection NEMA 3S, IK10
Altitude <6,600ft (2,000m)
Operating temperature -30°C to 55°C (-22°F to 131°F )
Working || Storage Humidity ≤ 95% RH || ≤ 99% RH (Non-condensing)
Display 10’’ touch screen
Communication Protocol OCPP 1.6J
Access Control RFID: ISO/IEC 14443A/B || Credit Card Optional
Power Electronics Cooling Air Cooled
Regulatory Compliance UL-2202 || EMC: EN 61000-6-1:2007, EN 61000-6- 3:2007/A1:2011/AC:2012
Communication Ethernet - 4G/Wi-Fi
Electrical Safety: GFCI RCD 20 mA Type A
Electrical Safety: Surge Protection 20 kA
Electrical Safety General Over Voltage, Under Voltage, Over Current, Missing Ground
Electrical Safety: Output Short Output power disabled when output is short circuited
Electrical Safety Temperature Temperature Sensors @ Charge Coupler and Power Electronics
Emergency Stop Disables output power with emergency stop button
