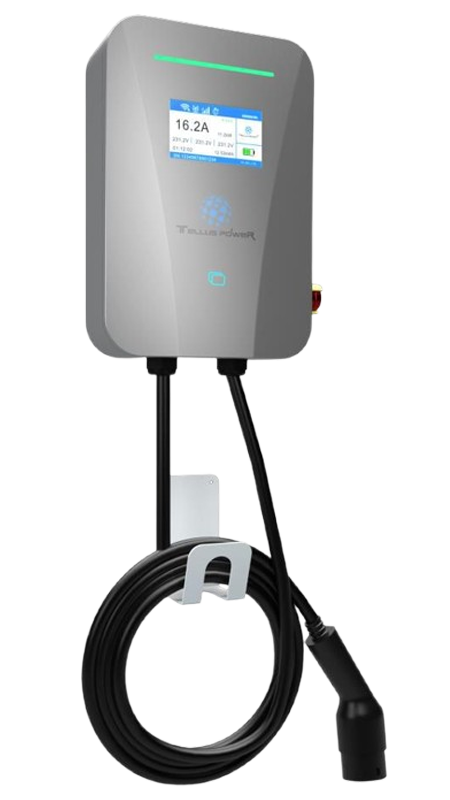

Tellus Power GreenĀ / Wallmount AC ChargersĀ
| Charging Connector No. 1 | 1 | ||
|---|---|---|---|
| Electrical | Rated Voltage | 230AC | |
| Input Voltage Range | 230±20% | ||
| Operation Frequency | 50/60Hz | ||
| Output Voltage Range | Same asinput | ||
| Rated Current | 32A | ||
| Output Current Range | 6~32A | ||
| Rated Output Wattage | 7kW | ||
| Safety | Protective Functions | Emergency Stop Button | Supports |
| Short Circuit | Supports | ||
| Overcurrent | 34A | ||
| Overvoltage | ≥265VAC | ||
| Undervoltage | ≤190VAC | ||
| Surge Protection | Supports | ||
| Overtemperature | ≥55℃(Calibration basedontest results) | ||
| Ground and L, N reverse connection | Supports | ||
| Relay sticking detection | Supports | ||
| Vehicle end diode anomaly detection | Supports | ||
| Leakage | Built-in Type-B RCMU | ||
| Start-up | RFID card | Supports | |
| Environmental adaptability | |||
| Operation Temp | -10℃~+55℃ | ||
| Storage Transport Temp. | -40℃~+80℃ | ||
| Altitude | ≤2000m | ||
| Humidity | ≤95% no condensation | ||
| HMI | LED Indicators | Supports | |
| Display | 4.3-inch (English) | ||
| Communications Support | Ethernet | Supports | |
| 4G | Supports | ||
| WIFI | dual frequency WIFI:2.4G, 5.8G | ||
| Physical Property | Materials | PC | |
| IP Class | IP65 | ||
| IK Class | IK10 | ||
| Connector mechanical operating life | ≥10000 times | ||
| Output Connector | Type 2 | ||
| Standard Charging Cable Length | 5m | ||
| Installation Type | Wall mount | ||
| Other | Remote software update | Supports | |
| Diagnostic capabilities/data monitoring | Supports | ||
| RFID | ISO 14443A/B, ISO 15693 Standard | ||
| Energy Calculation | Yes | ||
| OCPP1.6J | Yes | ||
| AC Power Input | 208-240VAC 60Hz, single phase @ 40A x 2 |
| Power Connections | Dual Port Level 2, Level 2: (2) Independent 40A branch circuits |
| Required Breaker Panel | (2) 40A Dual pole breaker (non GFCI type) or (1) 40A with power sharing |
| Output Current | 30A Continuous x 2 |
| Station Power Output | 7.2kW Max for each port |
| Wiring | (2) 208-240 VAC and shared Earth/Ground. Total 5 wires |
| EV Charging Connector | SAE J1772TM (Level 2) |
| EV Charging Cable | 18' Long |
| Display | 5" touch screen |
| Network Connectivity | LAN: hard wired Cat 5 for master/slave stations. WAN: Cellular network for the master station |
| RFID Reader | Active multi-standard |
| Data Inputs/Outputs | Rj45 x 2 (CAT-5 Ethernet cable connects Gateway station to Non- Gateway station) |
| Construction | Housing: 1/4" aluminum; Base Pad 1/2" Aluminum; End Caps: Aluminum; Head: Polycarbonate plastic |
| Housing Color | Gray |
| Enclosure Rating | NEMA3R |
| Operating Temperature | -30° to +130°F (-35° to +55°C) |
| Operating Humidity | Up to 95°/o non-condensing |
| Terminal Block Temp. Rating | 212°F (100°C) |
| Plug Out Protection | Power cut-off per SAE J17712TM specifications |
| Ground Fault Protection | 20mA |
| Open Safety Ground Protection | Monitors safety (green wire) ground connection |
| Surge Protection | 6kV@3000A (additional protection at panel advised) |
| Power Metering Accuracy | 1°/o -/+ Accuracy |
| Power Report/Store Interval | 15-minute, aligned to hour |
| Grid Health Protection | Line voltage & frequency detection logging |
| Safety Certification | ETL Listed. Complies: UL2231-1, UL2231-2, UL2231-2, UL2594, UL 991;NEC Article 625 for J1772, CAN/CSA-C22.2 No. 280 |
| Weight | Pole Model: 30 lbs., Wall Model: 30 lbs., Pedestal: 73 lbs |
| Environmental Data | Housing: RoHS compliant major components |
| Dimensions | Pole/Wall Mount: 54" H X 7" W. Pedestal Mount: 70" H X 7" W. |
| Base Pad Size | 12" x 12" x 12" (Pedestal Mount Only) |
| Warranty | 2-Years Parts Only |
